5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia

Shenzhen Xietaikang Precision Electronic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia from wholesalers

    Buy cheap 5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia from wholesalers
    • Buy cheap 5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia from wholesalers
    • Buy cheap 5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia from wholesalers
    • Buy cheap 5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia from wholesalers

    5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia

    Ask Lasest Price
    Brand Name : XTKCONN
    Model Number : MICRO USB
    Certification : CE,SGS,ROHS,ISO9001
    Price : Negotiable price
    Payment Terms : L/C, T/T,Payyal
    Supply Ability : 2KK pcs
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia


    USB Charging Port Connector for Sony Xperia MICRO USB female Connector 5.9mm pitch


    With more than 10 years of export experience along with excellent quality, advanced services and competitive prices, EtopLink has won numerous customers' trust and support. Etoplink is always trying to shared with you the newest,highest quality mobile phone parts, accesories, and electronic products, and most suprising pricing. More importantly,We provide special service, accepting Small Orders with Custom Branding for customers, in order to grow with our customers. We will be happy to shared with you the latest information with you and make your own Brand.


    Specifications


    Mounting TypeSMT
    No. Of Positions5p
    Rated current1.0A AC
    Rated voltage30V
    Contact Resistance30m/pin ohms MAX
    Insulation Resistance1000mohms min
    Insertion Force8-35 N
    Operation Temperature-25℃ to +85℃
    Withstanding Voltage500V/1min AC
    HousingLCP
    ContactCopper alloy
    GenderFemale
    Price TermFOB
    Durability cycles5000 Cycles Min
    Lead Time7-10 working Days

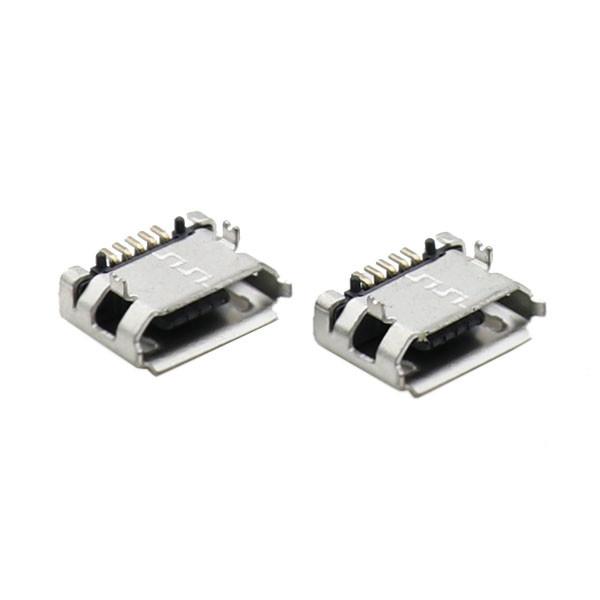

    5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia

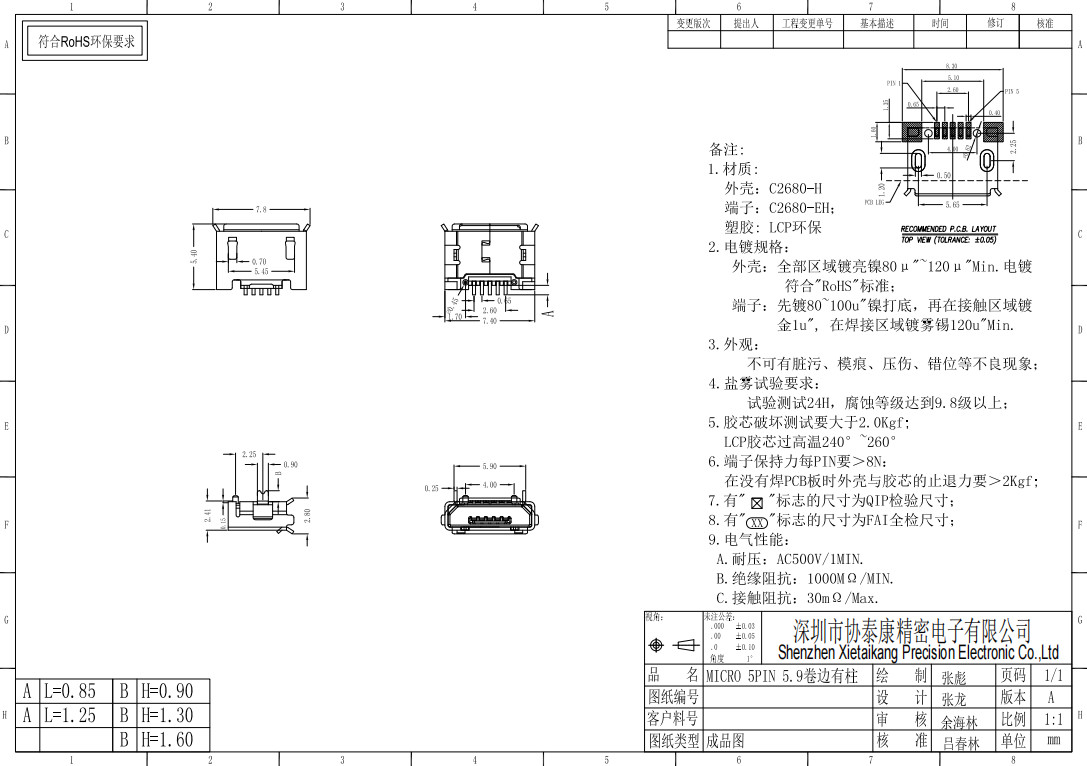

    Drawing

    5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia


    Product Application


    1) Smart Lock.
    2) Charging wires / charger.
    3) Mobile power supply.
    4) Camera module.
    5) Computer Peripheral Products.
    6) action camera manual Mini Sport DV


    Packaging & Shipping


    1. Normally within 1~3 working days once payment received;

    2. Package will be in a good condition with suitable size to save the freight;

    3. Customer shipping account are acceptable;

    4. If the declared value for customs clearance are required, please notice us before shipping.
