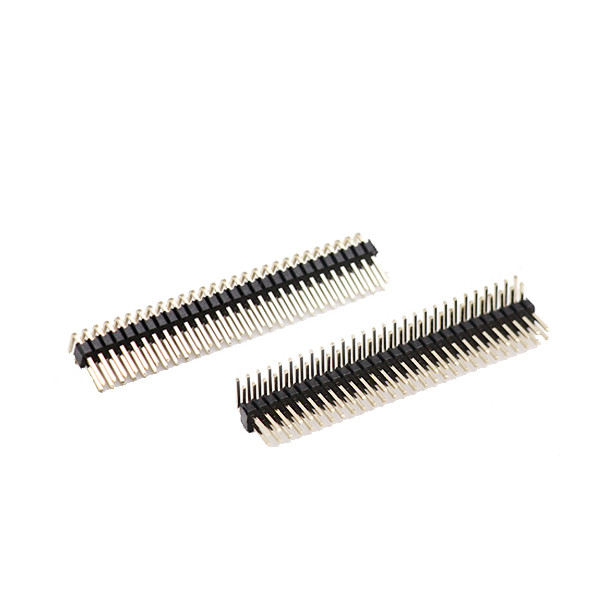

90 Degree 1.27mm Pitch Dip Pin Header PCB connector double row Rohs
Pin headers are stiff metallic connectors that are soldered to a
circuit board and stick up to receive a connection from a female
socket. While pin headers (often called PH, or headers) are male by
definition, female equivalents are also quite common, and we refer
to them as female headers (FH) or header connectors.
Product Description
| Secification: | 1.27mm Pitch |
| Type: | single Plastic Dual Row DIP 90° |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Current Rating: | 3.0 AMP |
| Withstand Voltage : | 600 V AC/minute |
| Operating Temprature: | -40 ℃ - +105 ℃ |
| Insulation Resistance | 1000M min |
| Contact Resistance: | 30m max |
| Contact material: | Copper Alloy |
| Contact Plating : | Gold or Tin over 50μ "Ni |
| Standard : | PBT |
Drawing
What's the Pin Header
1. Pin header is called universal connector. Based on different
designs for PCB,they choose different pitch connectors to meet.
2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm 3.96 pitch pin header are
featured products in our company. If you need special pin header
that standard pitch couldn't satisfy, e-mail or call our sales
team.
3. Generally, pin headers with suited female headers are used to
finish created modules in electronic industry.
4. Regarding pin header electrical and mechanical properties, same
pitch has the same function, which we have shown clearly in our
data sheet.
5. Another common variation on pin header is called "machine pin"
version. The normal version is formed out of stamped and folded
sheet metal, machine pin connectors are formed by tooling the metal
into the desired shape, which is a more robust, with a better joint
and longer life, making it more expensive though. Still more and
more automotive and medical industry customers choose machine pin
to improve connection stability.
Features
1.Cost-effective.
2.Easy to transport.
3.Widely used.
4.Environmentally friendly and ROHS compliant.
5.High stability Mating times are twice the industry standard
6.Long service life The service life of more than 5 years.
7.Anti-oxidation Maintain anti-oxidation for more than 3 years.
8.High and low-temperature resistance Can withstand changes in a
temperature difference of 145℃.
