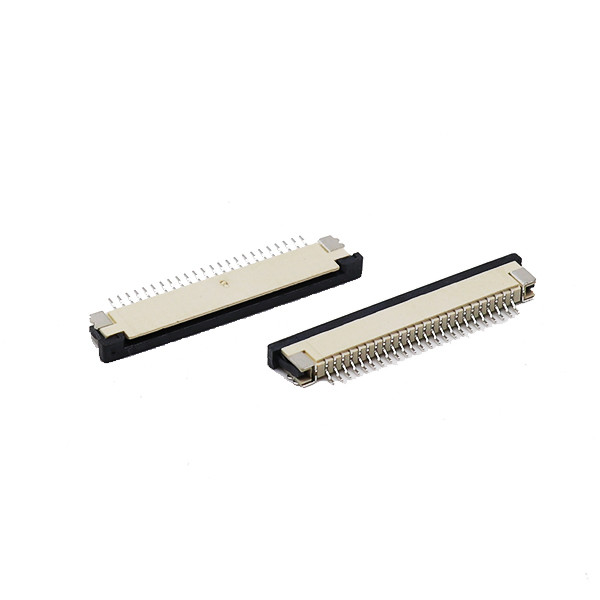

20pin FFC FPC connector 1.0mm Pitch FPC Connector H=2.0 right ZIF
SMT slider series
Xietaikang’s FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit)
connectors with wide variety of product line-up offer the best
combination of signal reliability, compactness, wide circuit size
range and cable style choices of any similar version in the market.
Super-fine pitch and small-size FFC/FPC Connectors with ZIF,
slider, flip actuator and FPC-to-board styles and a variety of
circuit sizes deliver both high reliability and speedy data rates.
Description
This Series are suitable for applications in which high contact
reliability is required under harsh environments regarding
vibration, temperature, humidity, etc. Applications include
in-vehicle units such as car navigation system units, GPS units,
and car audio products, medical or industrial equipment, and OA or
AV equipment. FPCs/FFCs with tabs prevent improper mating, enable
secure connection, and increase the force to retain FPCs/FFCs.
| Pitch | 1.0mm |
| Height | 2.0mm | No. Of position: 4-40pin |
| Mounting Type | SMT/ZIF |
| Contact Location | Single-sided contact |
| Type | Slide lock |
| Current Rating | 0.5A/Pin Max |
| Voltage Rating | 50V AC/DC MAX |
| Withstanding Voltage | 250V AC,1min |
| Cover Material | LCP UL94V-0 black |
| Housing | LCP UL94V-0 Natural |
| Terminal/Contact | Copper alloy |
| Plating | Tin-plating / Gold-plating |
| Operation Temperature | -40℃ to +85℃ |
| Lead Time | 7-10 working Days |
Unit Price
Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco,
Halo,....Etc
All the step are doing by ourself. So we can control the cost
We have more than 30 units automation equipments to product as
possible
We consists of 2 subordinations , located partly in Hubei
,Guangdong
With large scale of production lines, we can reach to cost
reduction at the most extent
Service
XTK Offer good pre-sales & after-sales service &Strong
technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to
offer the good quality product and save
3. time.
4. Free Samples:3-5 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping
safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly
returned, replacement,,or repair
8. kits if customers are not satisfied)
